气压气动涡轮振动器NCT系列
添加时间: 2012/6/6 点击次数: 16508 次
|
特点:
免润滑剂操作,免维修,噪音度的降低,高效率的运转,适合各种恶劣的环境,防尘防水防爆,长时间连续运转。
1、型号以及功能数据
2、本体尺寸图,如下所示 |
| |
|
应用范围: NCT涡轮式振动器适用于原料的移动,如:清桶,特别是架桥,料桶内的鼠洞阻塞,避免积料及管路堵塞,维持原料顺利的流动,加速筛网的下料。
结构和运转的特性: 振动靠本体内的涡轮叶片产生振动。非常方便安装,硬化染黑的铝合金本体,轻巧防水防尘,适用于各种不同环境,操作时应使用一个2口2位电磁阀,及过滤器最高操作温120°C,另外还可以提供不锈钢本体的震动器。 |

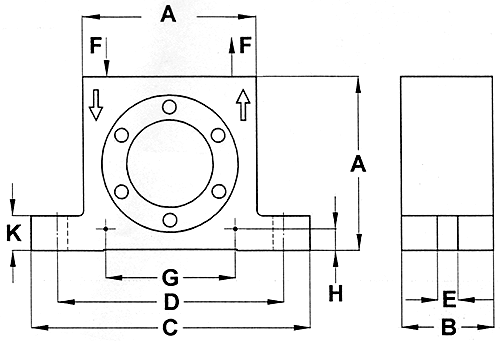

NCT本体尺寸图:
|
NCT型号及功能:
型号 |
不平衡力 |
频率[min] |
中央出力 牛顿(N) |
空气消耗[/min] |
噪音分贝[dB(A)] |
(cm/kg) |
2bar |
4bar |
6bar |
2bar |
4bar |
6bar |
2bar |
4bar |
6bar |
2bar |
4bar |
6bar |
NCT 1 |
0.0062 |
29,400 |
36,000 |
40,500 |
294 |
441 |
558 |
31 |
55 |
79 |
64 |
70 |
75 |
NCT 2 |
0.0124 |
24,000 |
28,600 |
32,400 |
392 |
557 |
714 |
33 |
56 |
82 |
65 |
69 |
72 |
NCT 3 |
0.016 |
27,000 |
33,600 |
38,400 |
631 |
976 |
1,275 |
45 |
83 |
115 |
69 |
76 |
79 |
NCT 4 |
0.023 |
23,800 |
29,800 |
33,800 |
715 |
1,121 |
1,441 |
46 |
79 |
117 |
65 |
71 |
71 |
NCT 5 |
0.049 |
18,600 |
24,600 |
27,600 |
919 |
1,607 |
2,022 |
119 |
188 |
261 |
68 |
80 |
85 |
NCT 10 |
0.096 |
16,500 |
20,400 |
22,500 |
1,434 |
2,191 |
2,666 |
119 |
192 |
262 |
73 |
75 |
82 |
NCT 15 |
0.142 |
17,400 |
21,000 |
23,400 |
2,365 |
3,444 |
4,277 |
229 |
392 |
600 |
76 |
85 |
86 |
NCT 29 |
0.282 |
12,600 |
15,000 |
18,000 |
2,459 |
3,485 |
5,018 |
227 |
363 |
592 |
68 |
72 |
77 |
NCT 55 |
0.545 |
11,100 |
13,800 |
16,200 |
3,683 |
5,692 |
7,844 |
465 |
796 |
1,158 |
77 |
80 |
85 |
NCT 108 |
1.081 |
9,000 |
10,200 |
12,000 |
4,802 |
6,168 |
8,537 |
455 |
751 |
1,226 |
73 |
79 |
84 |
NCT 126 |
1.262 |
8,000 |
9,900 |
10,500 |
4,430 |
6,783 |
7,631 |
630 |
1,160 |
1,687 |
71 |
79 |
83 |
NCT 250 |
2.502 |
5,100 |
6,900 |
7,800 |
3,569 |
6,533 |
8,348 |
625 |
1,125 |
1,845 |
71 |
78 |
82 | |
NCT 本体尺寸图 :
Type |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F
|
G (mm) |
H (mm) |
K (mm) |
Mass (kg) |
NCT 1 |
40 |
27 |
70 |
56 |
6.5 |
1/8" |
30 |
5.5 |
10 |
0.165 |
NCT 2 |
40 |
27 |
70 |
56 |
6.5 |
1/8" |
30 |
5.5 |
10 |
0.162 |
NCT 3 |
50 |
32 |
86 |
68 |
7 |
1/8" |
40 |
7 |
12 |
0.230 |
NCT 4 |
50 |
32 |
86 |
68 |
7 |
1/8" |
40 |
7 |
12 |
0.240 |
NCT 5 |
65 |
43 |
113 |
90 |
9 |
1/4" |
50 |
9 |
16 |
0.550 |
NCT 10 |
65 |
43 |
113 |
90 |
9 |
1/4" |
50 |
9 |
16 |
0.570 |
NCT 15 |
80 |
56 |
128 |
104 |
9 |
1/4" |
60 |
10 |
16 |
1.045 |
NCT 29 |
80 |
56 |
128 |
104 |
9 |
1/4" |
60 |
10 |
16 |
1.090 |
NCT 55 |
100 |
73 |
160 |
130 |
11 |
3/8" |
80 |
12 |
20 |
2.125 |
NCT 108 |
100 |
73 |
160 |
130 |
11 |
3/8" |
80 |
12 |
20 |
2.250 |
NCT 126 |
120 |
86 |
194 |
152 |
17 |
3/8" |
100 |
13 |
25 |
3.585 |
NCT 250 |
120 |
86 |
194 |
152 |
17 |
3/8" |
100 |
13 |
25 |
3.820 | | |
|
|
